中华消化病与影像杂志(电子版) ›› 2026, Vol. 16 ›› Issue (03) : 236 -242. doi: 10.3877/cma.j.issn.2095-2015.2026.03.008

论著

高频超声联合彩色多普勒超声对肠套叠肠壁血流状态与复位成功率的评估价值
郭建华1, 郭黎黎2,(), 吕莉1
  1. 1710061 西安,西北妇女儿童医院医学超声中心
    2710038 西安医学院第二附属医院住院超声科
  • 收稿日期:2025-11-13 出版日期:2026-06-01
  • 通信作者: 郭黎黎

Study on the evaluation value of high frequency ultrasound combined with color Doppler ultrasound in the blood flow status and reduction success rate of intussusception

Jianhua Guo1, Lili Guo2,(), Li Lyu1

  1. 1Medical Ultrasound Center, Northwest Women's and Children's Hospital, Xi'an 710061, China
    2Department of Inpatient Ultrasound, The Second Affiliated Hospital of Xi'an Medical University, Xi’an 710038, China
  • Received:2025-11-13 Published:2026-06-01
  • Corresponding author: Lili Guo
引用本文:

郭建华, 郭黎黎, 吕莉. 高频超声联合彩色多普勒超声对肠套叠肠壁血流状态与复位成功率的评估价值[J/OL]. 中华消化病与影像杂志(电子版), 2026, 16(03): 236-242.

Jianhua Guo, Lili Guo, Li Lyu. Study on the evaluation value of high frequency ultrasound combined with color Doppler ultrasound in the blood flow status and reduction success rate of intussusception[J/OL]. Chinese Journal of Digestion and Medical Imageology(Electronic Edition), 2026, 16(03): 236-242.

目的

探讨高频超声联合彩色多普勒超声评估肠套叠患儿肠壁血流状态的价值及其对灌肠复位成功率的预测效能。

方法

采用回顾性分析方法,收集2022年1月至2024年12月西北妇女儿童医院收治的293例急性肠套叠患儿临床资料,其中复位成功组259例,复位失败组34例。所有患儿入院2 h内完成高频超声检查,定量测量同心圆直径、套鞘直径及套筒征长度,定性观察同心圆征、假肾形征及积液;同步采用彩色多普勒超声按改良Rubin标准分级评估肠壁血流状态。患儿均接受超声引导下空气灌肠复位治疗。比较两组超声指标差异,通过受试者工作特征曲线分析(ROC)单一及联合诊断对复位失败的预测价值。

结果

复位失败组患儿的同心圆直径、套鞘直径及套筒征长度均显著大于复位成功组(P<0.001)。复位失败组假肾形征(85.29%比16.60%)和腹腔积液(44.12%比6.18%)的发生率显著高于复位成功组,而同心圆征的出现率则显著低于复位成功组(76.47%比96.91%,均P<0.001)。复位成功组绝大多数患儿(73.36%)表现为0级血流,复位失败组中II~IV级血流信号的比例显著高于复位成功组(P<0.001)。高频超声联合彩色多普勒超声在预测复位失败方面表现出优异的诊断效能。联合诊断的敏感度(94.12%)、特异度(97.68%)及约登指数(0.918)均高于单一高频超声或单一彩色多普勒超声。ROC曲线分析证实,联合诊断的曲线下面积(AUC=0.962)显著大于单一高频超声(AUC=0.875)或单一彩色多普勒超声(AUC=0.884)(P<0.05)。

结论

高频超声联合彩色多普勒超声通过量化肠壁形态学特征与血流状态,对肠套叠灌肠复位成功率具有重要评估价值,可为临床预后预判提供可靠影像学依据。

Objective

To explore the value of high-frequency ultrasound combined with color Doppler ultrasound in evaluating the blood flow state of intestinal wall in children with intussusception and its predictive effect on the success rate of enema reduction.

Methods

A retrospective analysis was conducted to collect clinical data of 293 children with acute intussusception admitted to Northwest Women's and Children's Hospital from January 2022 to December 2024, among them, there were 259 cases in the successful reduction group and 34 cases in the failed reduction group. All patients completed high-frequency ultrasound examination within 2 hours of admission. The concentric circle diameter, sheath diameter, and sleeve sign length were quantitatively measured, and the concentric circle sign, pseudorenal sign, and fluid accumulation were qualitatively observed. The color Doppler ultrasound was simultaneously used to evaluate the intestinal wall blood flow status according to the modified Rubin grading system. All patients received ultrasound-guided air enema reduction treatment. The differences in ultrasound indicators between two groups were compared and the predictive value of single and combined diagnosis for reset failure was analyzed through receiver operating characteristic (ROC) curve.

Results

The concentric circle diameter, sheath diameter, and sleeve sign length in the reduction failure group were significantly greater than those in the reduction success group (P<0.001). The incidences of pseudorenal sign (85.29% vs. 16.60%) and ascites (44.12% vs. 6.18%) in the reduction failure group were significantly higher than those in the reduction success group, while the incidence of concentric circle sign was significantly lower (76.47% vs. 96.91%, P<0.001). The vast majority of children in the reduction success group (73.36%) presented with grade 0 blood flow, whereas the proportions of grade Ⅱ-Ⅳ blood flow signals in the reduction failure group were significantly higher than those in the reduction success group (P<0.001). High-frequency ultrasound combined with color Doppler ultrasound demonstrated excellent diagnostic performance in predicting reduction failure. The sensitivity (94.12%), specificity (97.68%), and Youden index (0.918) of the combined diagnosis were higher than those of high-frequency ultrasound alone or color Doppler ultrasound alone. ROC curve analysis further confirmed that the area under the curve (AUC) of the combined diagnosis (0.962) was significantly greater than that of high-frequency ultrasound alone (0.875) or color Doppler ultrasound alone (0.884) (P<0.05).

Conclusion

High-frequency ultrasound combined with color Doppler ultrasound has important evaluation value for the success rate of intussusception enema reduction by quantifying the morphological characteristics and blood flow state of intestinal wall, and can provide reliable imaging basis for clinical prognosis prediction.

表1 两组急性肠套叠患儿高频超声形态学特征比较
图1 肠套叠患儿不同改良Rubin血流分级的高频超声联合彩色多普勒超声典型图像
表2 两组急性肠套叠患儿的肠壁血流分级比较[例(%)]
表3 单一及联合诊断方法预测急性肠套叠患儿复位失败的四格表分析
表4 三种诊断方法预测急性肠套叠患儿复位失败的效能指标比较

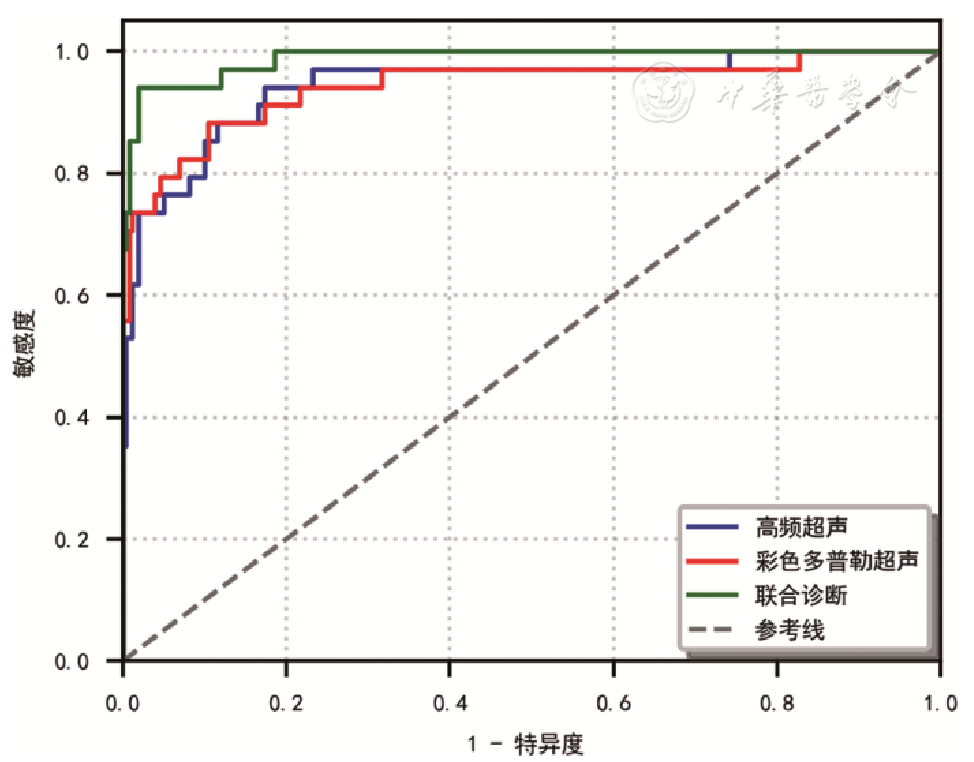

图2 三种诊断方法预测急性肠套叠患儿复位失败的ROC曲线
[1]
江华, 刘慧, 张文芳, 等. 高频超声检查在小儿肠套叠鉴别诊断中的应用价值[J]. 医学影像学杂志, 2024, 34(7): 86-88.
[2]
田慧, 李成龙, 李钱程, 等. 探讨CT联合HFUS对小儿肠套叠的诊断研究[J]. 中国CT和MRI杂志, 2024, 22(1): 127-129.
[3]
Alsinan T, Altokhais T, Alshayeb F, et al. Risk factors for failure of enema reduction of intussusception in children[J]. Sci Rep, 2024, 14(1): 20786.
[4]
汪久宏, 丁莉, 梁丽. 腹部彩超联合高频彩超用于小儿肠套叠诊断经验及价值[J/OL]. 中华消化病与影像杂志(电子版), 2024, 14(3): 226-228.
[5]
Xu XX, Cai YJ, Liu J, et al. Predicting bowel necrosis in pediatric acute intussusception using roundness and other related factors[J]. BMC Pediatr, 2025, 25(1): 843.
[6]
吴参伟, 高莹, 杨兵社. 经腹超声联合高频超声在小儿肠套叠中的诊断效能及在温盐水灌肠复位成败中的预测价值[J]. 临床医学研究与实践, 2023, 8(20): 98-101.
[7]
Rahmani E, Amani-Beni R, Hekmatnia Y, et al. Diagnostic Accuracy of Ultrasonography for Detection of Intussusception in Children; a Systematic Review and Meta-Analysis[J]. Arch Acad Emerg Med, 2023, 11(1): e24.
[8]
Ito Y, Kusakawa I, Murata Y, et al. Japanese guidelines for the management of intussusception in children, 2011[J]. Pediatr Int, 2012, 54(6): 948-58.
[9]
那熹, 王伟. 胃肠彩超、腹部X线平片、CT平扫与空气灌肠用于小儿肠套叠诊断及复位效果评估的对比分析[J]. 中国CT和MRI杂志, 2020, 18(1): 131-133.
[10]
Lian DD, Sun C. Comparison of Ultrasound Guided Saline Enema and X-ray-Guided Air Enema in the Treatment of Intussusception Reduction in Children[J]. Pediatr Emerg Care, 2024, 40(7): 532-535.
[11]
Park SJ, Lee JM, Kim SH, et al. Assessment of reducibility of ileocolic intussusception in children: usefulness of color Doppler sonography[J]. Pediatr Radiol, 2003, 33(4): 247-251.
[12]
Acer-Demir T, Güney LH, Fakioğlu E, et al. Comparison of Clinical Features of Intussusception in Terms of Age and Duration of Symptoms[J]. Pediatr Emerg Care, 2023, 39(11): 841-847.
[13]
方利民, 戴文娟. 高频超声联合经腹超声对小儿肠套叠的诊断价值[J]. 中国妇幼保健, 2024, 39(21): 4345-4348.
[14]
Kim SW, Cheon JE, Choi YH, et al. Feasibility of a deep learning artificial intelligence model for the diagnosis of pediatric ileocolic intussusception with grayscale ultrasonography[J]. Ultrasonography, 2024, 43(1): 57-67.
[15]
Singh S, Gupta S, Sharma S, et al. Role of color Doppler ultrasonography in predicting the viability of bowel loops in children with intussusception[J]. Pediatr Radiol, 2023, 53(6): 1035-1042.
[16]
任羿洁, 漆家高. 小儿腹型过敏性紫癜的彩色多普勒超声诊断:假阳性特征与影响因素研究[J]. 影像科学与光化学, 2025, 43(3): 34-42.
[17]
Zhao L, Chen W, Guo WL. Serum tRNA-derived fragments as potential biomarkers in children with acute intussusception[J]. Arch Med Sci, 2021, 19(6): 1889-1900.
[18]
Nagarajan KV, Bhat N. Intestinal ultrasound in inflammatory bowel disease: New kid on the block[J]. Indian J Gastroenterol, 2024, 43(1): 160-171.
[19]
Salman R, Seghers VJ, Schiess DM, et al. Ultrasound imaging of bowel obstruction in infants and children[J]. Radiol Med, 2024, 129(8): 1241-1251.
[20]
郭建康, 柏艳红, 梁优, 等. CT联合HFUS对小儿肠套叠诊断及复位的评估研究[J]. 影像科学与光化学, 2022, 40(6): 1586-1590.
